1.1Kaggle渠道
- kaggle是一个机器学习领域一个非常盛行的竞赛渠道
- 一同kaggle上还有许多揭露的数据集
- 并且kaggle上还供给核算资源，能够运用GPU
- 还能够和世界各地的小伙伴们一同讨论
1.2Keras generator读取数据
- 1.2.1在kaggle 10 monekys数据集上新建一个notebook，kaggle会供给一段代码
# This Python 3 environment comes with many helpful analytics libraries installed
# It is defined by the kaggle/python Docker image: https://github.com/kaggle/docker-python
# For example, here's several helpful packages to load
import numpy as np # linear algebra
import pandas as pd # data processing, CSV file I/O (e.g. pd.read_csv)
# Input data files are available in the read-only "../input/" directory
# For example, running this (by clicking run or pressing Shift+Enter) will list all files under the input directory
import os
for dirname, _, filenames in os.walk('/kaggle/input'):
for filename in filenames:
print(os.path.join(dirname, filename))
# You can write up to 20GB to the current directory (/kaggle/working/) that gets preserved as output when you create a version using "Save & Run All"
# You can also write temporary files to /kaggle/temp/, but they won't be saved outside of the current session
- 1.2.2首先在编写代码的时候，需求将需求的库导入进来：
%matplotlib inline
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import os
import pandas as pd
import sklearn
import sys
import tensorflow as tf
import time
from tensorflow import keras
print(tf.__version__)
print(sys.version_info)
for module in mpl, np, pd, sklearn, tf, keras:
print(module.__name__, module.__version__)
运转成果：
2.6.4
sys.version_info(major=3, minor=7, micro=12, releaselevel='final', serial=0)
matplotlib 3.5.2
numpy 1.21.6
pandas 1.3.5
sklearn 1.0.2
tensorflow 2.6.4
keras.api._v2.keras 2.6.0
-
能够发现，在keras中运用的tensorflow的版本时2.6.4
-
1.2.3然后，能够定义练习集，验证集的路径了
- 运用os.path.exists判断路径是否存在
- 运用os.listdir检查路径下的文件目录
train_dir = "/kaggle/input/10-monkey-species/training/training"
valid_dir = "/kaggle/input/10-monkey-species/validation/validation"
label_file = "/kaggle/input/10-monkey-species/monkey_labels.txt"
print(os.path.exists(train_dir))
print(os.path.exists(valid_dir))
print(os.path.exists(label_file))
print(os.listdir(train_dir))
print(os.listdir(valid_dir))
运算成果：
True
True
True
['n8', 'n6', 'n7', 'n1', 'n0', 'n2', 'n5', 'n4', 'n9', 'n3']
['n8', 'n6', 'n7', 'n1', 'n0', 'n2', 'n5', 'n4', 'n9', 'n3']
- 1.2.4运用pd.read_csv来读取数据
labels = pd.read_csv(label_file, header=0)
print(labels)
运转成果：
Label Latin Name Common Name \
0 n0 alouatta_palliata\t mantled_howler
1 n1 erythrocebus_patas\t patas_monkey
2 n2 cacajao_calvus\t bald_uakari
3 n3 macaca_fuscata\t japanese_macaque
4 n4 cebuella_pygmea\t pygmy_marmoset
5 n5 cebus_capucinus\t white_headed_capuchin
6 n6 mico_argentatus\t silvery_marmoset
7 n7 saimiri_sciureus\t common_squirrel_monkey
8 n8 aotus_nigriceps\t black_headed_night_monkey
9 n9 trachypithecus_johnii nilgiri_langur
Train Images Validation Images
0 131 26
1 139 28
2 137 27
3 152 30
4 131 26
5 141 28
6 132 26
7 142 28
8 133 27
9 132 26
-
label是子文件姓名到真实的类别姓名的一个映射，假如需求搭建一个inference的代码，需求把类别姓名转成真实的姓名，在本次的模型搭建中，需求用到labels name。
-
1.2.5接下来，读取图片
- height，width是图片读取出来之后缩放的大小，由于不同的图片大小是不相同的，卷积神经网络是没有办法去处理不同图片的大小的
- keras.preprocessing.image.ImageDataGenerator是keras封装的一种高档的读取图片的办法
- rescale = 1./255：也便是说图片中的每个点都x1/255,由于图片中的每个像素点是0-255之间，那么x这个数的话就会得到0-1之间的数
- rotation_range：是图片增强的一种办法，把图片随机旋转一个视点，我设置的是40，意思便是图片旋转-40~40之间的值
- width_shift_range：水平方向的位移，我设置的是0.2，那么模型就能够处理原始图片和位移之后的图片
- height_shift_range： 笔直方向的位移，假如height_shift_range和width_shift_range的值是在0-1之间的，便是位移的比例，假如值大于1，便是位移像素值
- shear_range： 剪切强度
- zoom_range： 缩放强度
- horizontal_flip：是否做水平翻转
- fill_mode： 是否填充像素，填充像素的办法，nearest： 运用周围真是的像素点填充像素
- 调用flow_from_directory办法来从文件中读取图片
- train_dir：文件路径
- target_size：图片大小
- batch_size：生成的图片多少张为一组
- seed：随机数
- shuffle：是否需求混排
- class_mode：控制label的格式，categorical：运用one-hot编码之后的label
- 在验证集上不需求做练习集上的办法，由于验证集只是用来评估它的效果，可是rescale是有必要要做的，不然练习集和验证集的值的分布就不相同了
- 运用samples检查练习集和验证集有多少图片
height = 128
width = 128
channels = 3
batch_size = 64
num_classes = 10
train_datagen = keras.preprocessing.image.ImageDataGenerator(
rescale = 1./255,
rotation_range = 40,
width_shift_range = 0.2,
height_shift_range = 0.2,
shear_range = 0.2,
zoom_range = 0.2,
horizontal_flip = True,
fill_mode = 'nearest',
)
train_generator = train_datagen.flow_from_directory(train_dir,
target_size = (height, width),
batch_size = batch_size,
seed = 7,
shuffle = True,
class_mode = "categorical")
valid_datagen = keras.preprocessing.image.ImageDataGenerator(rescale = 1./255)
valid_generator = valid_datagen.flow_from_directory(valid_dir,
target_size = (height, width),
batch_size = batch_size,
seed = 7,
shuffle = False,
class_mode = "categorical")
train_num = train_generator.samples
valid_num = valid_generator.samples
print(train_num, valid_num)
运转成果：
Found 1098 images belonging to 10 classes.
Found 272 images belonging to 10 classes.
1098 272
- 1.2.6在练习会集取数据
for i in range(2):
x, y = train_generator.next()
print(x.shape, y.shape)
print(y)
运转成果：
(64, 128, 128, 3) (64, 10)
[[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]]
(64, 128, 128, 3) (64, 10)
[[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]]
1.3根底模型搭建与练习
- 运用两个卷积加一个pooling的三个组合，再加两个全连接层来定义模型
model = keras.models.Sequential([
keras.layers.Conv2D(filters=32, kernel_size=3, padding='same',
activation='relu', input_shape=[width, height, channels]),
keras.layers.Conv2D(filters=32, kernel_size=3, padding='same',
activation='relu'),
keras.layers.MaxPool2D(pool_size=2),
keras.layers.Conv2D(filters=64, kernel_size=3, padding='same',
activation='relu'),
keras.layers.Conv2D(filters=64, kernel_size=3, padding='same',
activation='relu'),
keras.layers.MaxPool2D(pool_size=2),
keras.layers.Conv2D(filters=128, kernel_size=3, padding='same',
activation='relu'),
keras.layers.Conv2D(filters=128, kernel_size=3, padding='same',
activation='relu'),
keras.layers.MaxPool2D(pool_size=2),
keras.layers.Flatten(),
keras.layers.Dense(128, activation='relu'),
keras.layers.Dense(num_classes, activation='softmax'),
])
model.compile(loss="categorical_crossentropy",
optimizer="adam", metrics=['accuracy'])
model.summary()
检查模型的结构：
Model: "sequential"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
conv2d (Conv2D) (None, 128, 128, 32) 896
_________________________________________________________________
conv2d_1 (Conv2D) (None, 128, 128, 32) 9248
_________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 64, 64, 32) 0
_________________________________________________________________
conv2d_2 (Conv2D) (None, 64, 64, 64) 18496
_________________________________________________________________
conv2d_3 (Conv2D) (None, 64, 64, 64) 36928
_________________________________________________________________
max_pooling2d_1 (MaxPooling2 (None, 32, 32, 64) 0
_________________________________________________________________
conv2d_4 (Conv2D) (None, 32, 32, 128) 73856
_________________________________________________________________
conv2d_5 (Conv2D) (None, 32, 32, 128) 147584
_________________________________________________________________
max_pooling2d_2 (MaxPooling2 (None, 16, 16, 128) 0
_________________________________________________________________
flatten (Flatten) (None, 32768) 0
_________________________________________________________________
dense (Dense) (None, 128) 4194432
_________________________________________________________________
dense_1 (Dense) (None, 10) 1290
=================================================================
Total params: 4,482,730
Trainable params: 4,482,730
Non-trainable params: 0
_________________________________________________________________
- 运用fit_generator来练习模型
epochs = 300
history = model.fit_generator(train_generator,
steps_per_epoch = train_num // batch_size,
epochs = epochs,
validation_data = valid_generator,
validation_steps = valid_num // batch_size)
- 打印学习曲线
def plot_learning_curves(history, label, epcohs, min_value, max_value):
data = {}
data[label] = history.history[label]
data['val_'+label] = history.history['val_'+label]
pd.DataFrame(data).plot(figsize=(8, 5))
plt.grid(True)
plt.axis([0, epochs, min_value, max_value])
plt.show()

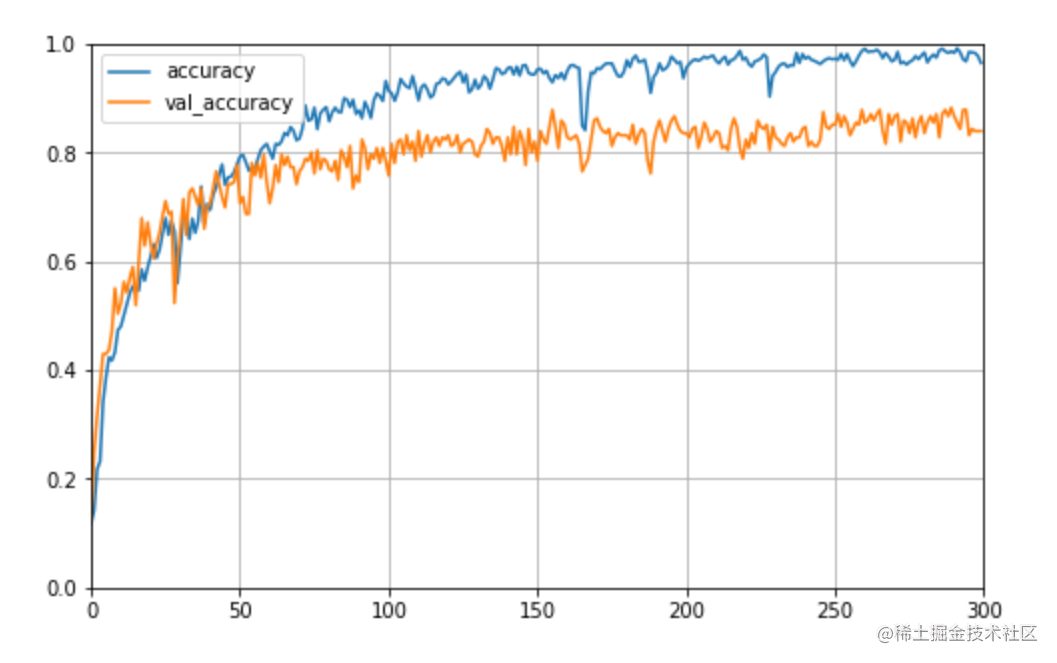

plot_learning_curves(history, 'accuracy', epochs, 0, 1)

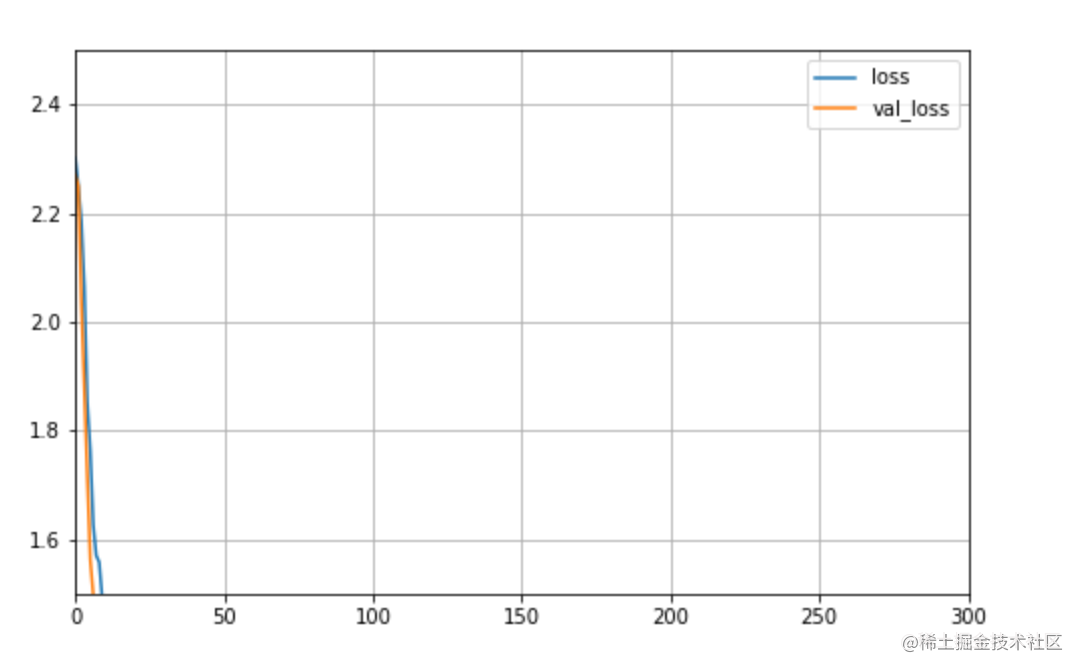

plot_learning_curves(history, 'loss', epochs, 1.5, 2.5)
运转成果：
声明：本站所有文章，如无特殊说明或标注，均为本站原创发布。任何个人或组织，在未征得本站同意时，禁止复制、盗用、采集、发布本站内容到任何网站、书籍等各类媒体平台。如若本站内容侵犯了原著者的合法权益，可联系我们进行处理。
