接上篇

？怎么开发个人博客：

预备

  • 服务器
  • docker
  • dockerHub
  • github
  • nginx

方针

运用github的actions-workflows进行deploy

流程图

graph TD
0.增加装备文件 --> 1.推送代码 --> 2.触发`Action` --> 3.触发`workflow` --> 4.打包镜像 --> 5.推送镜像 --> 6.登录服务器 --> 7.删去原有容器 --> 8.拉取新镜像 --> 9.布置容器 --> 10.运用`nginx`重定向

0.增加装备文件

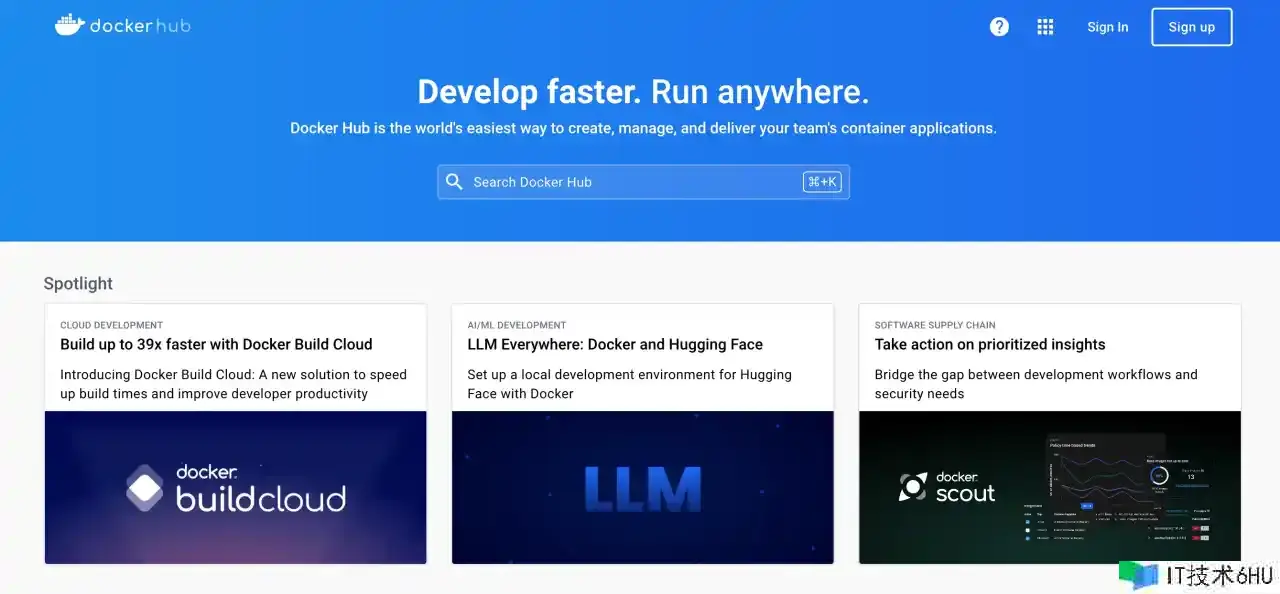

注册dockerHub 账号

dockerhub

？我的博客是怎么进行继续布置的：

在项目根目录创立.github文件夹

在.github文件夹下创立wrokflows文件夹

在wrokflows文件夹下创立deploy.yml (deploy称号可自行装备，不与其他冲突即可)

# 流程称号
name: Docker Image CI

根据下面的过程渐渐补充布置文件

Dockerfile装备

如果你也是NextJs 14^能够参阅我的装备

FROM node:18-alpine AS base
# Install dependencies only when needed
FROM base AS deps
# Check https://github.com/nodejs/docker-node/tree/b4117f9333da4138b03a546ec926ef50a31506c3#nodealpine to understand why libc6-compat might be needed.
# RUN apk add --no-cache libc6-compat
WORKDIR /app
# Install dependencies based on the preferred package manager
COPY package.json yarn.lock* package-lock.json* pnpm-lock.yaml* ./
RUN
  if [ -f yarn.lock ]; then yarn --frozen-lockfile;
  elif [ -f package-lock.json ]; then npm ci;
  elif [ -f pnpm-lock.yaml ]; then yarn global add pnpm && pnpm i --frozen-lockfile;
  else echo "Lockfile not found." && exit 1;
  fi
# Rebuild the source code only when needed
FROM base AS builder
WORKDIR /app
COPY --from=deps /app/node_modules ./node_modules
COPY . .
# Next.js collects completely anonymous telemetry data about general usage.
# Learn more here: https://nextjs.org/telemetry
# Uncomment the following line in case you want to disable telemetry during the build.
# ENV NEXT_TELEMETRY_DISABLED 1
RUN yarn build
# If using npm comment out above and use below instead
# RUN npm run build
# Production image, copy all the files and run next
FROM base AS runner
WORKDIR /app
ENV NODE_ENV production
# Uncomment the following line in case you want to disable telemetry during runtime.
# ENV NEXT_TELEMETRY_DISABLED 1
RUN addgroup --system --gid 1001 nodejs
RUN adduser --system --uid 1001 nextjs
COPY --from=builder /app/public ./public
# Set the correct permission for prerender cache
RUN mkdir .next
RUN chown nextjs:nodejs .next
# Automatically leverage output traces to reduce image size
# https://nextjs.org/docs/advanced-features/output-file-tracing
#COPY --from=builder --chown=nextjs:nodejs /app/.next ./_next
COPY --from=builder --chown=nextjs:nodejs /app/.next/standalone ./
COPY --from=builder --chown=nextjs:nodejs /app/.next/static ./.next/static
COPY --from=builder --chown=nextjs:nodejs /app/.next/static ./public/_next
USER nextjs
EXPOSE 3000
ENV PORT 3000
# set hostname to localhost
ENV HOSTNAME "0.0.0.0"
CMD ["node", "server.js"]

1.推送代码

根本操作，不做赘述

git fetch
git add -A
git commit -m "feat: xxx"
git push

2.触发Action

在deploy.yml增加如下代码

on:
  push: # push 时触发ci
    branches: [master] # 作用于master分支

检测到 push 操作会触发Action作用于master分支

3.触发workflow

增加环境变量

env:
  # 环境变量
  # 镜像称号 可自定义
  IMAGE_NAME: my_blog
  # 容器称号 可自定义
  DOCKER_NAME: myBlog

增加使命

# 增加使命
jobs:
    #运用ubuntu环境构建
  build:
    runs-on: ubuntu-latest

4.打包镜像

  # 过程
    steps:
      # 拉取main分支代码
      - name: Checkout
        uses: actions/checkout@v3
      # 制造镜像
      - name: Build the Docker image
        run: docker build . --file Dockerfile --tag ${{env.IMAGE_NAME}}

5.推送镜像

      # 登录dockerHub
      - name: Log into registry
        if: github.event_name != 'pull_request'
        uses: docker/login-action@v2
        with:
          username: ${{ secrets.DOCKER_USERNAME }}
          password: ${{ secrets.DOCKER_PASSWORD }}
          logout: false
      - name: Extract Docker metadata
        id: meta
        uses: docker/metadata-action@v4
        with:
          images: ${{ env.IMAGE_NAME }}
          tags: |
            type=raw,value=latest,enable={{is_default_branch}}
            type=ref,enable=true,priority=600,prefix=,suffix=,event=tag
      # 推送镜像
      - name: Build and push Docker image
        uses: docker/build-push-action@v3
        with:
          context: .
          push: ${{ github.event_name != 'pull_request' }}
          tags: ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}
          labels: ${{ steps.meta.outputs.labels }}

6.登录服务器

      # 登录长途服务器，拉取镜像，制造并重启容器
      # https://github.com/marketplace/actions/remote-ssh-commands
      - name: ssh remote deploy
        uses: fifsky/ssh-action@master
        with:
          command: |
            cd /
            echo -e "1.docker login start==>"
            echo ${{ secrets.DOCKER_PASSWORD }} | docker login --username ${{ secrets.DOCKER_USERNAME }} --password-stdin

          # --下面填充更多过程---
          host: ${{ secrets.HOST }}
          user: ${{ secrets.USER }}
          pass: ${{ secrets.PASSWORD }}

7.删去原有容器

            # 中止容器
            echo -e "2.docker stop container==>"
            docker container stop ${{ env.DOCKER_NAME }}
            # 删去容器
            echo -e "3.docker conatainer rm==>"
            docker container rm ${{ env.DOCKER_NAME }}
            # 删去原镜像
            echo -e "4.docker image rm==>"
            docker image rm ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}

8.拉取新镜像

            # 拉取新镜像
            echo -e "5.docker pull==>"
            docker pull ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}

9.布置容器

            # 布置容器
            echo -e "6.docker container create and start==>"
            docker container run -d -p 3000:3000 --name ${{ env.DOCKER_NAME }} ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}

登出docker

            # 登出docker
            echo -e "7.docker logout==>"
            docker logout

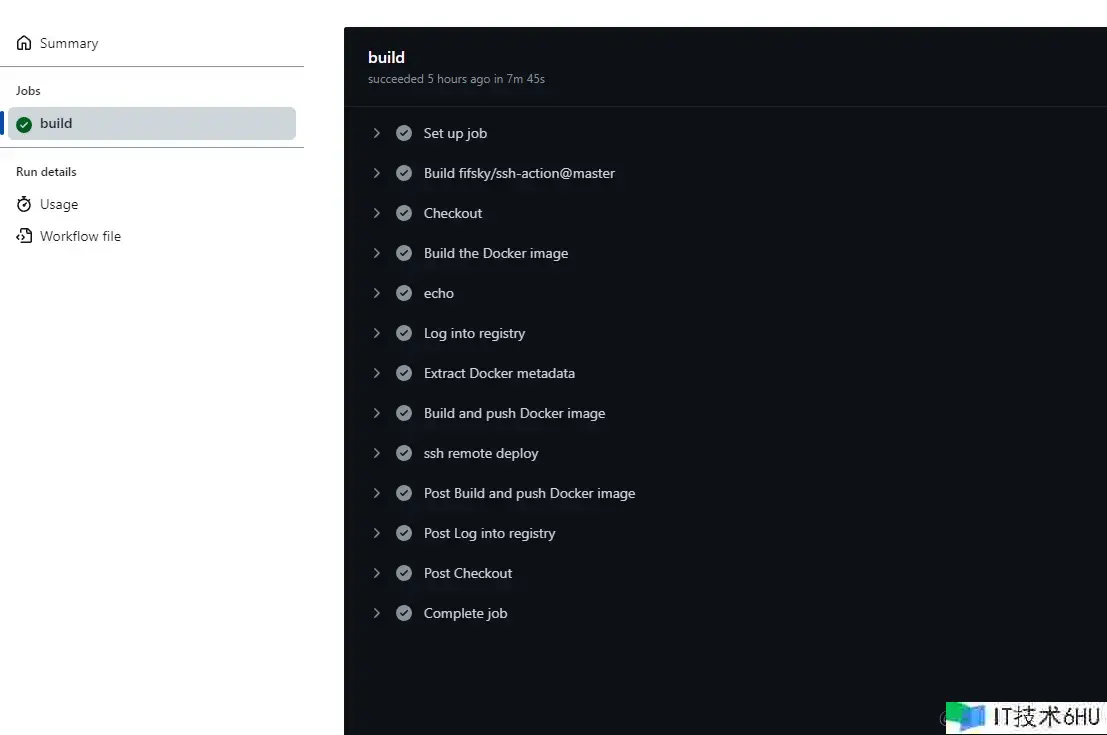

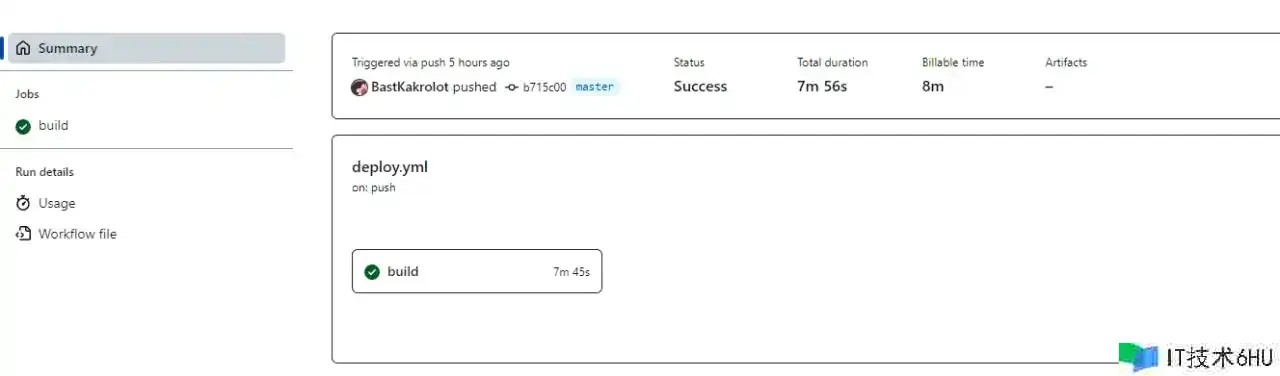

？我的博客是怎么进行继续布置的：

？我的博客是怎么进行继续布置的：

10.运用nginx重定向

server
{
    listen 80;
    server_name your.doman.xx;
    # ...
    location / {
        proxy_pass http://127.0.0.1:3000; # 容器地址
        # ...
    }
    # ...
}

完好deploy.yml

# 流程称号
name: Docker Image CI
on:
  push: # push 时触发ci
    branches: [master] # 作用于master分支
env:
  # 环境变量
  # 镜像称号
  IMAGE_NAME: my_blog
  # 容器称号
  DOCKER_NAME: myBlog
# 然后增加使命
jobs:
    #运用ubuntu环境构建
  build:
    runs-on: ubuntu-latest
      # 过程
    steps:
      # 拉取main分支代码
      - name: Checkout
        uses: actions/checkout@v3
      # 制造镜像
      - name: Build the Docker image
        run: docker build . --file Dockerfile --tag ${{env.IMAGE_NAME}}
      # 登录dockerHub
      - name: Log into registry
        if: github.event_name != 'pull_request'
        uses: docker/login-action@v2
        with:
          username: ${{ secrets.DOCKER_USERNAME }}
          password: ${{ secrets.DOCKER_PASSWORD }}
          logout: false
      - name: Extract Docker metadata
        id: meta
        uses: docker/metadata-action@v4
        with:
          images: ${{ env.IMAGE_NAME }}
          tags: |
            type=raw,value=latest,enable={{is_default_branch}}
            type=ref,enable=true,priority=600,prefix=,suffix=,event=tag
      # 推送镜像
      - name: Build and push Docker image
        uses: docker/build-push-action@v3
        with:
          context: .
          push: ${{ github.event_name != 'pull_request' }}
          tags: ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}
          labels: ${{ steps.meta.outputs.labels }}
      # 登录长途服务器，拉取镜像，制造并重启容器
      # https://github.com/marketplace/actions/remote-ssh-commands
      - name: ssh remote deploy
        uses: fifsky/ssh-action@master
        with:
          command: |
            cd /
            echo -e "1.docker login start==>"
            echo ${{ secrets.DOCKER_PASSWORD }} | docker login --username ${{ secrets.DOCKER_USERNAME }} --password-stdin

            echo -e "2.docker stop container==>"
            docker container stop ${{ env.DOCKER_NAME }}
            echo -e "3.docker conatainer rm==>"
            docker container rm ${{ env.DOCKER_NAME }}
            echo -e "4.docker image rm==>"
            docker image rm ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}
            echo -e "5.docker pull==>"
            docker pull ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}
            echo -e "6.docker container create and start==>"
            docker container run -d -p 3000:3000 --name ${{ env.DOCKER_NAME }} ${{ secrets.DOCKER_USERNAME }}/${{ steps.meta.outputs.tags }}
            echo -e "7.docker logout==>"
            docker logout
          host: ${{ secrets.HOST }}
          user: ${{ secrets.USER }}
          pass: ${{ secrets.PASSWORD }}

注意 ${{ secrets.XXX }} 是需要在github里装备的

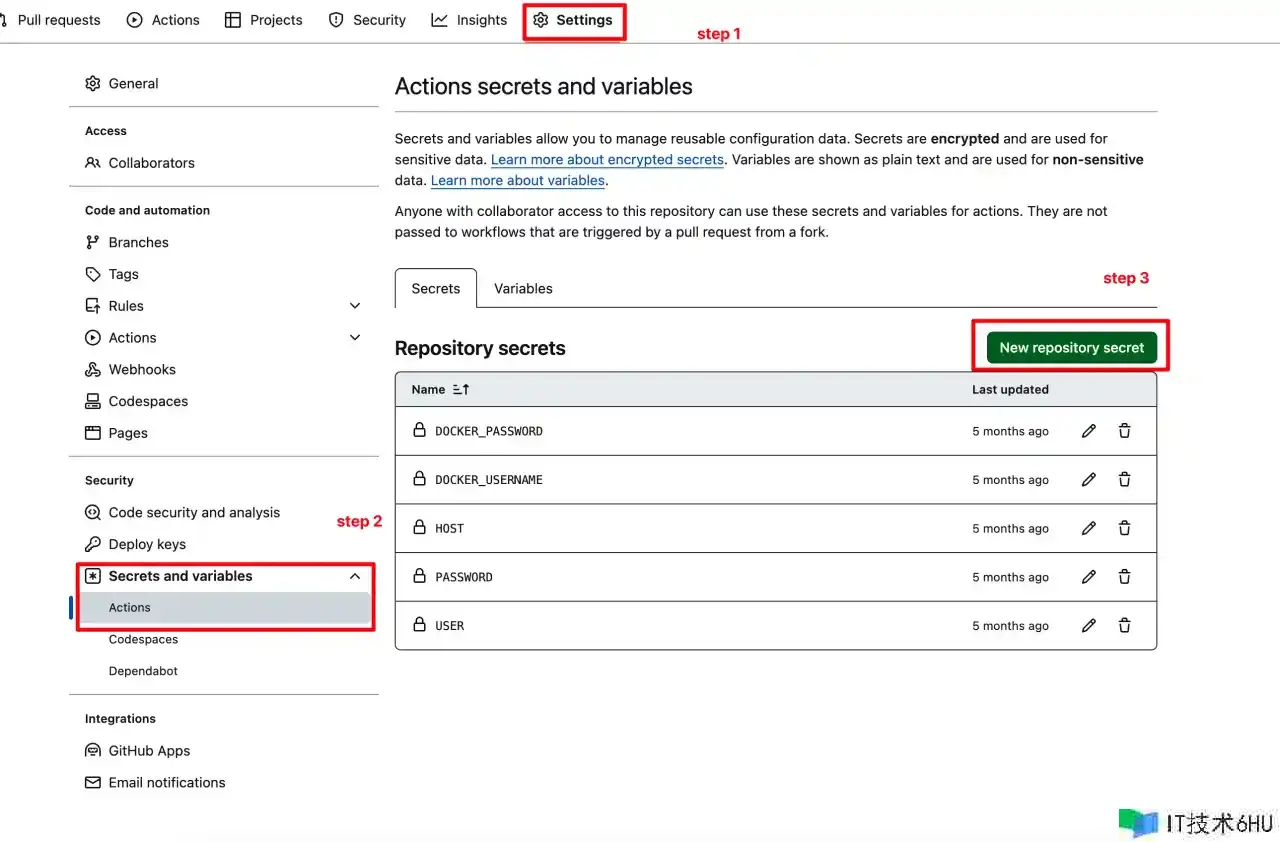

装备 Secrets

？我的博客是怎么进行继续布置的：

Secrets 描绘
DOCKER_PASSWORD dockerhub密码
DOCKER_USERNAME dockerhub账号
HOST 服务器host
PASSWORD 服务器密码
USER 服务器账号

最终

本教程不保证合适所有人，大家能够参阅我的来编写，如有问题十分欢迎在谈论区指出和沟通！！！
